Situation

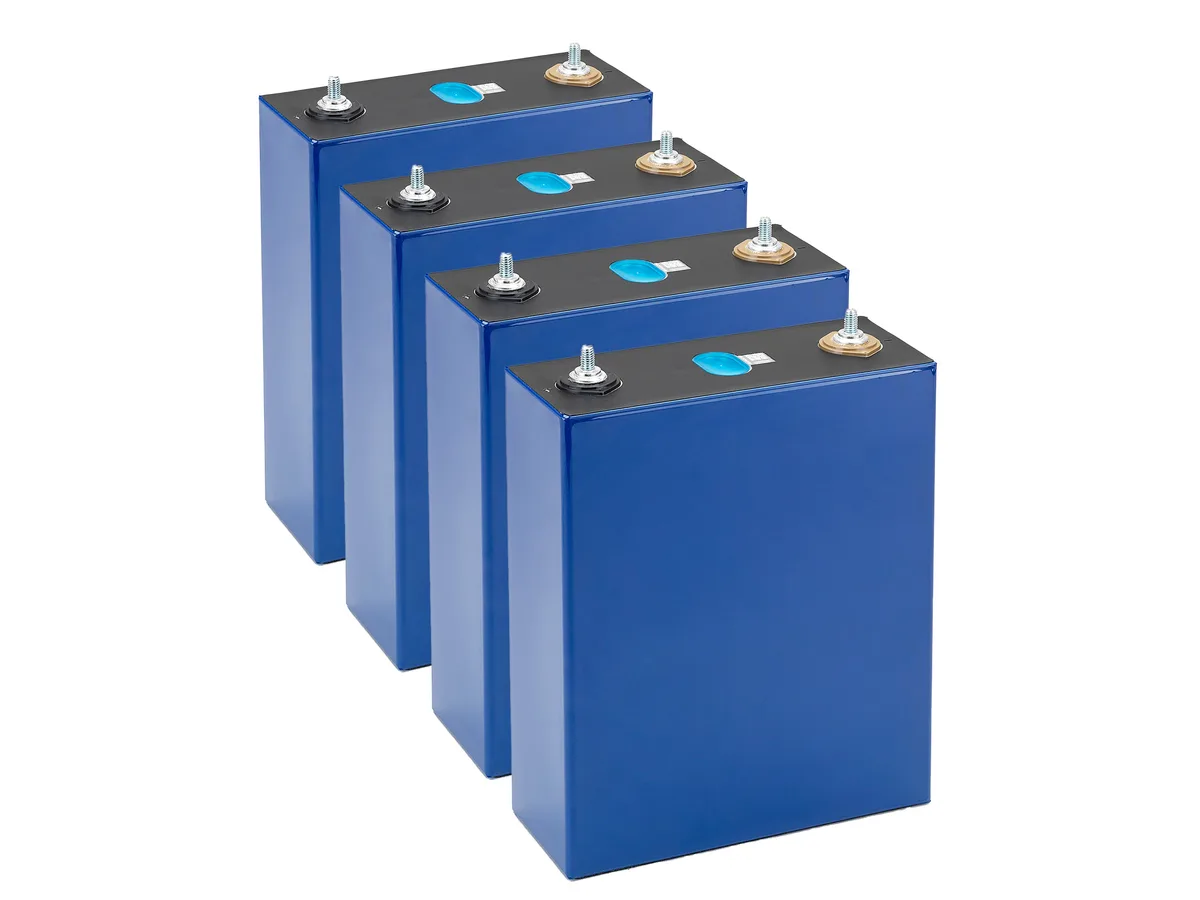

Your engineering team is qualifying an interconnect layer for 16S LiFePO4 battery modules used in residential, commercial, or utility-scale ESS. You need accurate cell voltage data, reliable temperature monitoring, and a component that integrates cleanly with your BMS without adding assembly labor or wiring-error risk on the production line.
The Challenge
Commodity wiring looms with crimped connections introduce voltage drops that cause BMS misreadings, single-point temperature sensors miss localized hotspots before thermal runaway, and non-keyed connectors allow cross-connection during pack assembly. Each failure mode delays qualification, drives rework, and in worst cases causes destructive pack failures at first power-on.
How do you source a 16S CCS wiring harness that delivers accurate cell sensing, distributed temperature monitoring, and error-proof pack assembly for European energy storage programs?
Our Answer

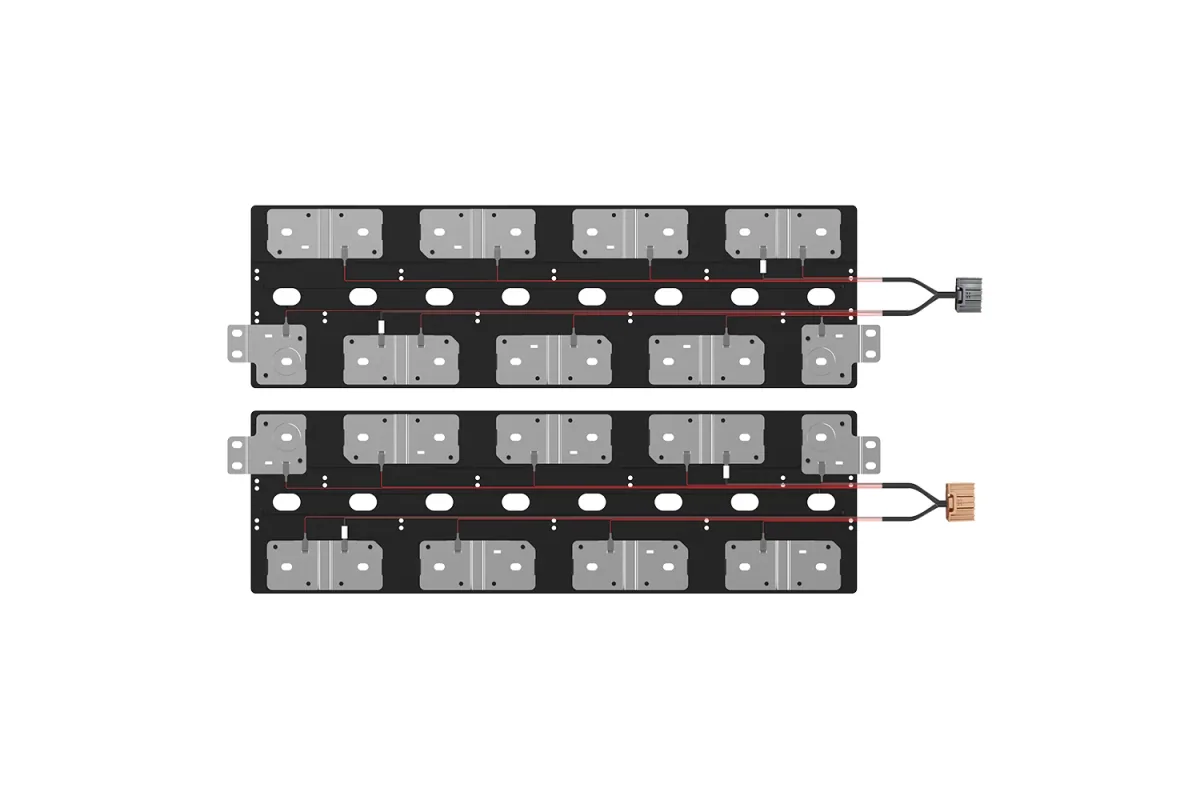

SSLBATT 16S CCS Wiring Harness (JK-CCS-16S-M2M3) integrates 16 laser-welded voltage sensing channels and 4 NTC thermistors into a modular 2×8S assembly with differently keyed WTB41 connectors – so every unit delivers ≤60 μΩ welding resistance, 100% conduction tested in-line, and physically prevents module cross-connection. With Poland Local Warehouse stock and 3-7 Days DDP delivery, we cut sourcing lead time and simplify EU OEM programs.
Precision Cell Voltage Sensing
Sixteen independent sensing channels using UL1332 AWG#22 PTFE-insulated wires deliver accurate voltage data for every cell in the string. This enables precise state-of-charge calculation, balanced charging across the pack, and early detection of cell-level anomalies before they escalate.
Multi-Point Temperature Monitoring
Four integrated NTC thermistors (10 kΩ at 25°C, B-value 3435K) with inter-sensor accuracy of ±1°C provide real-time thermal data across the module – a distributed sensing architecture that detects thermal gradients early and gives the BMS time to initiate protective measures.
Error-Proof Modular Assembly
The CCS-M2 and CCS-M3 modules use WTB41-series 24-pin connectors keyed differently, making it physically impossible to plug the wrong module into the wrong position. This reduces installation time, minimizes wiring errors, and simplifies field service and replacement of individual modules.
Where It Fits Best
View specifications
| Application | Why it fits |
|---|---|
| Residential ESS (5–20 kWh) | 16S LFP modules feed reliable voltage and temperature data to residential BMS units. |

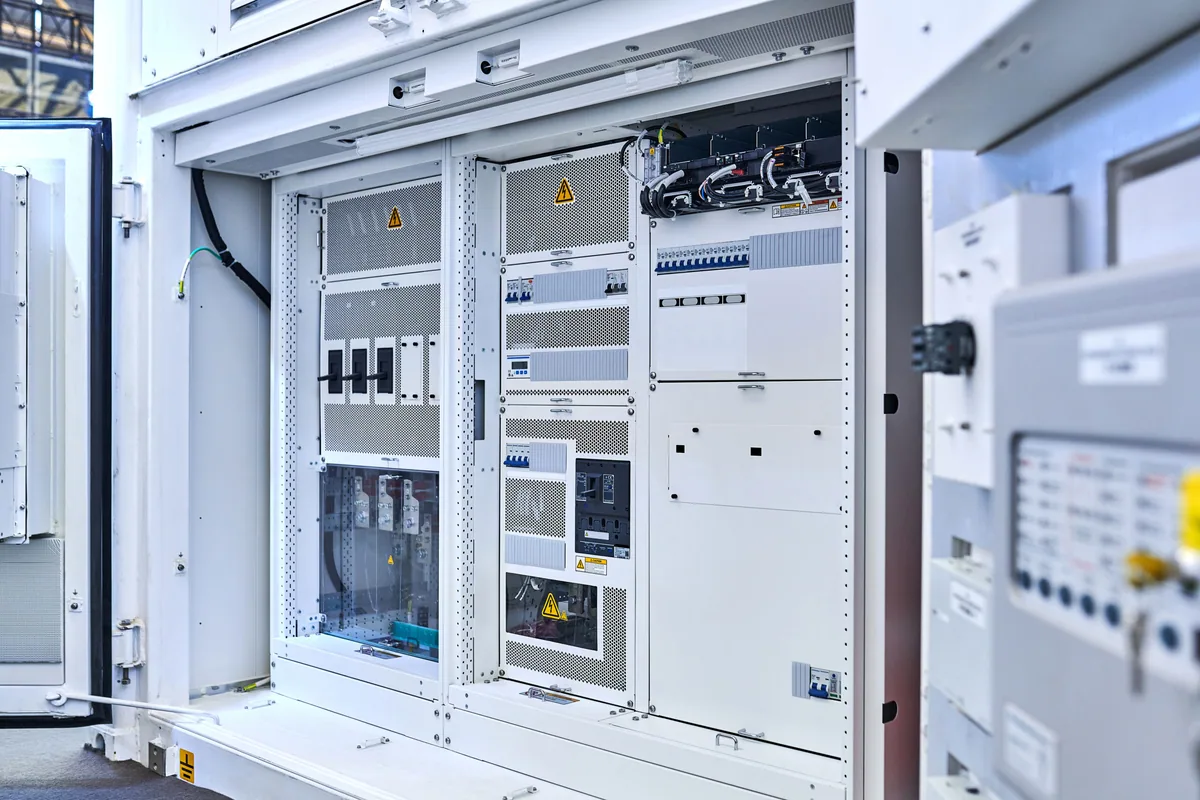

| Commercial & industrial cabinets (50 kWh–5 MWh) | Keyed modules prevent wiring errors during multi-module assembly. |
| OEM pack manufacturing | Modular 2×8S reduces assembly labor; QR traceability supports ISO-aligned quality systems. |
| UPS & critical power backup | 4-point NTC array provides early thermal warning for maximum uptime. |
Engineering Integration Notes
Mechanical compatibility
View specifications
| Mechanical factor | Operational effect |
|---|---|
| Modular 2×8S design (CCS-M2 + CCS-M3) | Two modules cover B0–B16 without long point-to-point runs. |
| ~601.7 mm module length | Pre-sized for 16S prismatic cell stacks in standard rack enclosures. |
| Integrated metal mounting brackets | Pre-punched holes speed mechanical integration into pack trays. |
| Cloth-tape bundled routing with heat-shrink splices | Reduces chafe, strain, and wiring errors during assembly. |
Electrical considerations
View specifications
| Validation item | Why it matters |
|---|---|
| Welding resistance ≤ 60 μΩ | Accurate cell data means accurate BMS decisions and longer battery life. |
| 100% conduction test incl. NTC circuits | Every sensing channel performs from day one. |
| Insulation ≥ 4380 VDC (busbar to bracket) | Safe for HV ESS enclosures with 1000 VDC pin-to-pin rating. |

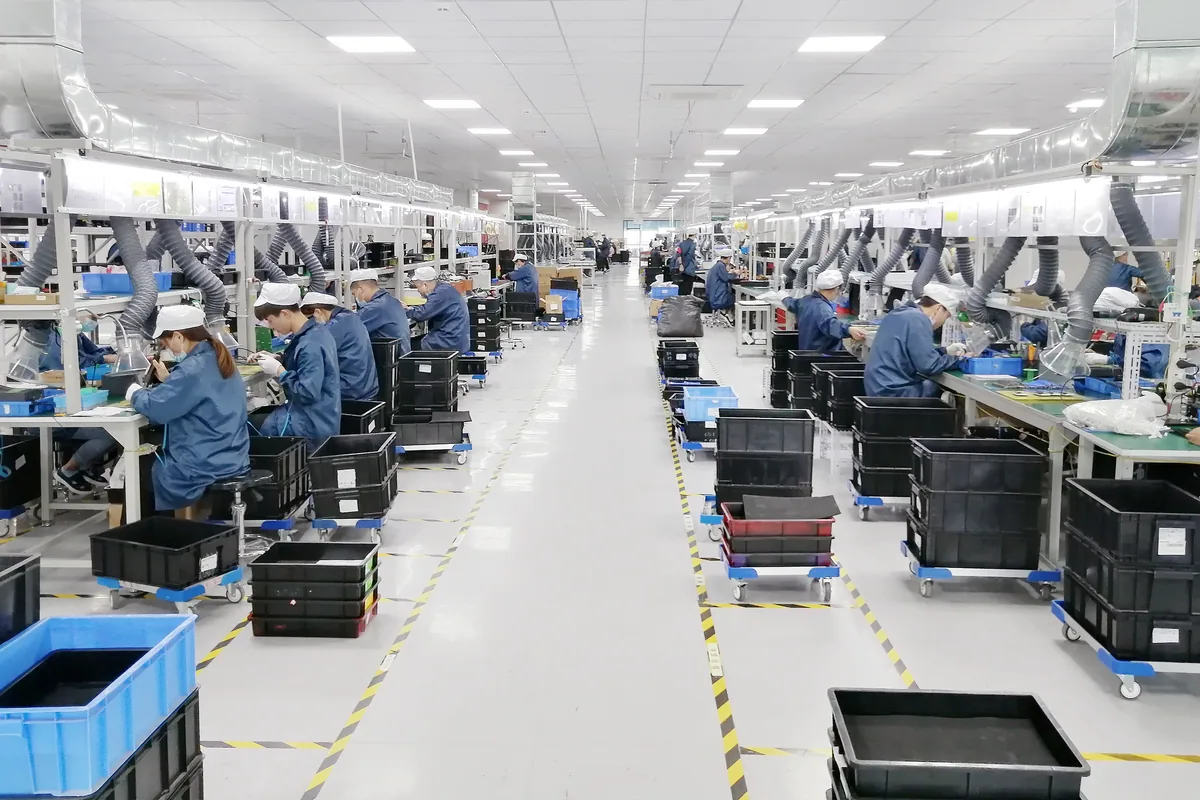

| 100% in-line testing, zero exceptions | Results traceable via unit QR code for complete quality accountability. |
Compliance and EU Delivery
The JK-CCS-16S-M2M3 is RoHS and REACH compliant and manufactured to QC/T 417.1-2001 automotive wiring standards with GB/T 1804-m general tolerances. Each unit carries a unique 28-character QR code linking part number, production date, shift, line, and serial number for full manufacturing traceability. Poland Local Warehouse planning supports 3–7 Days DDP replenishment for qualified European programs.
