HV Master BMS · 80–1000 VDC

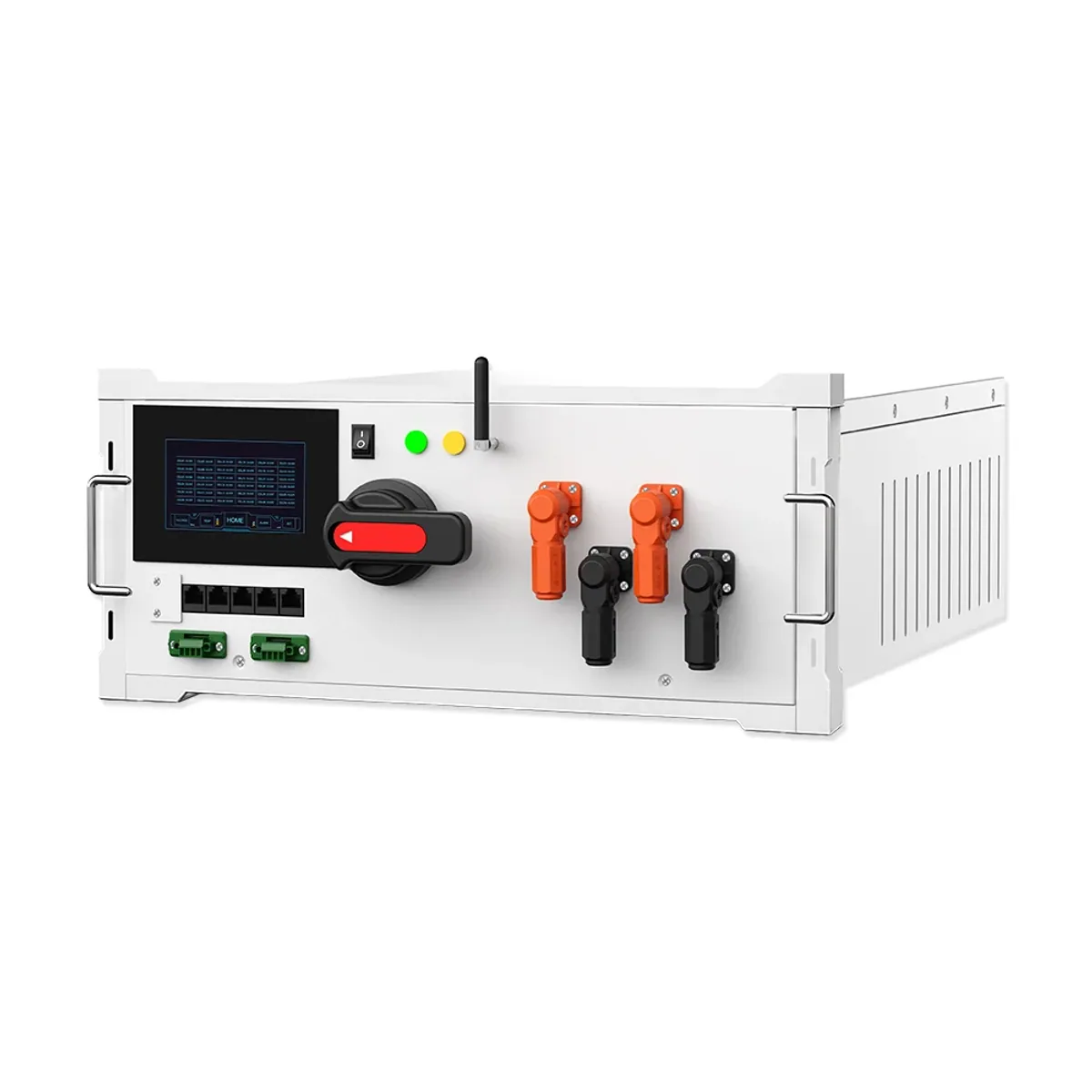

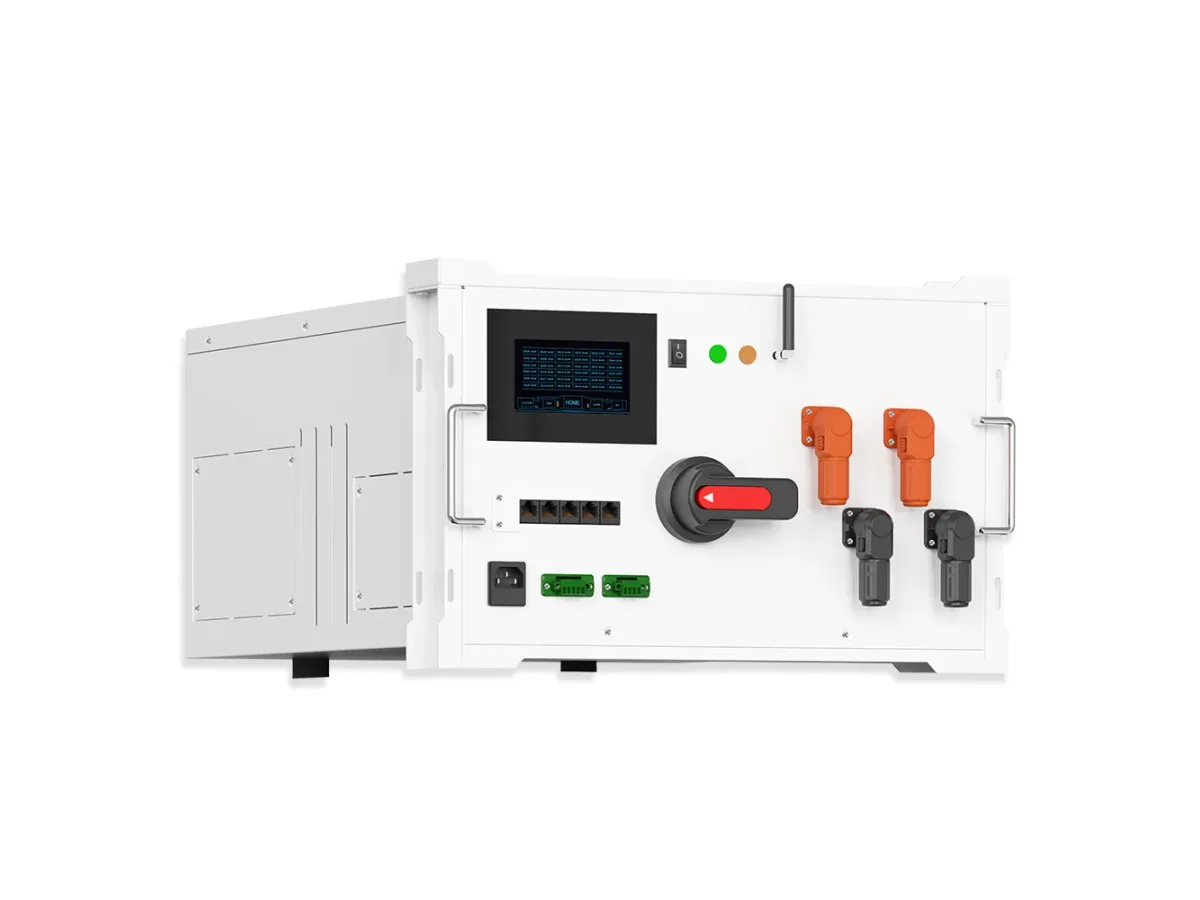

HV Master BMS Controller for High-Voltage Energy Storage
Centralized protection logic, contactor drive, and CAN/RS485 telemetry for 80–1000 VDC storage systems – 100 A to 200 A continuous, 64–256 cells in series.
Key Specifications
Voltage Range
80–1000 VDC
Current Rating
100–200 A
Cells in Series
64–256S
Communication
CAN / RS485
Overview
The Master of Your High-Voltage Stack
Situation
Your utility or C&I energy storage project needs a high-voltage BMS master that centralizes protection decisions and speaks CAN/RS485 to your PCS and EMS – without pulling system logic into the field.
The Challenge
When protection logic and communication are split across mismatched boards, contactor control lags, pre-charge inrush damages PCS equipment, and insulation faults surface only after a thermal event. At 1000 VDC, there is no room for board-level guesswork.
How do you deploy a high-voltage BMS master with centralized protection, contactor drive, and PCS/EMS integration for an 80–1000 VDC storage system?
Our Answer
The SSLBATT HV Master BMS centralizes protection logic, contactor control, and pre-charge sequencing for 80–1000 VDC systems with 100 A–200 A continuous rating. CAN/RS485 protocol mapping is pre-configured to your PCS or EMS model during technical review, and insulation monitoring runs across the full string – so the master is the single responsible party for system safety and telemetry.
Centralized Protection
The master drives external contactors and enforces overvoltage, undervoltage, overcurrent, short-circuit, and insulation protection across the full 80–1000 VDC range.
Pre-Charge Control
Integrated pre-charge circuit limits inrush current on system start, protecting contactors and downstream PCS equipment.
PCS/EMS Integration
CAN/RS485 protocol mapping pre-configured to your PCS or EMS model before sampling – not discovered during commissioning.
Where the HV Master Fits
View specifications
| System | Why the master fits |
|---|---|
| Containerized ESS | Centralized control for 80–1000 VDC utility-scale stacks |
| C&I Storage | Single master driving contactors for multi-cabinet commercial systems |
| Grid-Side Storage | PCS/EMS integration for frequency regulation and renewable smoothing |
HV Master BMS Variants
Master controller configurations from the SSLBATT HV BMS platform.
View specifications
| Model | Continuous Current | Voltage Range | Cells in Series | Communication | Pre-Charge | Accuracy | Certifications |
|---|---|---|---|---|---|---|---|
| SSLBATT-HV-M200 | 200 A continuous | 80–1000 VDC | 64–256S | CAN / RS485 / Daisy / RJ45 | Contactor + 50Ω resistor | Voltage ±0.5% FS | CE / RoHS / FCC |
| SSLBATT-HV-M100 | 100 A continuous | up to 1000 VDC | Multi-cabinet (BCU+BMU) | CAN / RS485 / Daisy | Auto pre-charge + fault detect | Voltage ≤5 mV | CE / RoHS / FCC, GB/T 34131-2023 |
Specifying Your HV Master
Match the master to your stack voltage, current, and PCS protocol.
View specifications
| Design factor | Operational effect |
|---|---|
| 80–1000 VDC range | Covers LFP and other chemistries across 64–256 cells in series |
| 100–200 A rating | Matches continuous current for container and C&I storage programs |
| CAN/RS485 mapping | Pre-configured to your PCS or EMS before sampling |
Protection Parameters We Tune
View specifications
| Threshold | Engineering purpose |
|---|---|
| Overvoltage / Undervoltage | Voltage ceilings and floors enforced across the full string. |
| Overcurrent / Short | Fast contactor response to current spikes and short-circuit events. |
| Insulation Monitoring | Continuous insulation fault detection across the high-voltage bus. |
| Pre-Charge Sequencing | Controlled inrush on start to protect PCS and downstream equipment. |
Specifications
HV Master BMS Specifications
SSLBATT-HV-M200 (200 A) and SSLBATT-HV-M100 (100 A) share the platform; key values shown for the flagship M200.
View specifications
| Parameter | SSLBATT-HV-M200 | SSLBATT-HV-M100 |
|---|---|---|
| Continuous Current | 200 A | 100 A |
| Voltage Range | 80–1000 VDC | up to 1000 VDC |
| Cells in Series | 64–256S | Multi-cabinet (BCU + BMU) |
| Communication | CAN / RS485 / Daisy / RJ45 | CAN / RS485 / Daisy |
| Insulation Monitoring | Integrated (20 MΩ typical) | Leakage protection |
| Pre-Charge Control | Contactor + 50 Ω resistor | Auto pre-charge + fault detect |
| Voltage Accuracy | ±0.5% FS | ≤5 mV (±2 mV @25 °C) |
| Operating Temp | -20~+65 °C | 10–30 °C optimal (thermal mgmt) |
| Protection Class | IP54 | Indoor rack |
| Certifications | CE, RoHS, FCC | CE, RoHS, FCC, GB/T 34131-2023 |
| Dimensions | 482 × 550 × 265 mm | 482 × 398 × 175 mm |
| Weight | ~18.5 kg | On request |
| Package | Main box + 2× 250 A contactors + 40 A pre-charge + 50 Ω resistor + 200 A shunt + 250 A fuse + BCU + 4× 250 A connectors | Master box + manual + mounting kit + CAN/RS485 cables + test report |
| Lead Time | 15–20 working days | 15–20 working days |
Safety
High-Voltage Safety
Engineered for 1000 VDC operation with redundant protection and insulation monitoring.
Redundant Contactor Control
Dual drive paths for fail-safe disconnection.
Insulation Fault Detection
Continuous monitoring alerts on ground faults before they escalate.
Thermal Safeguards
Temperature sensing and controlled shutdown logic.
Integration
PCS/EMS Compatibility
CAN/RS485 protocol mapping pre-configured to your PCS or EMS model during technical review.
Visual Context
Engineering Visuals
Where They Fit
Applications

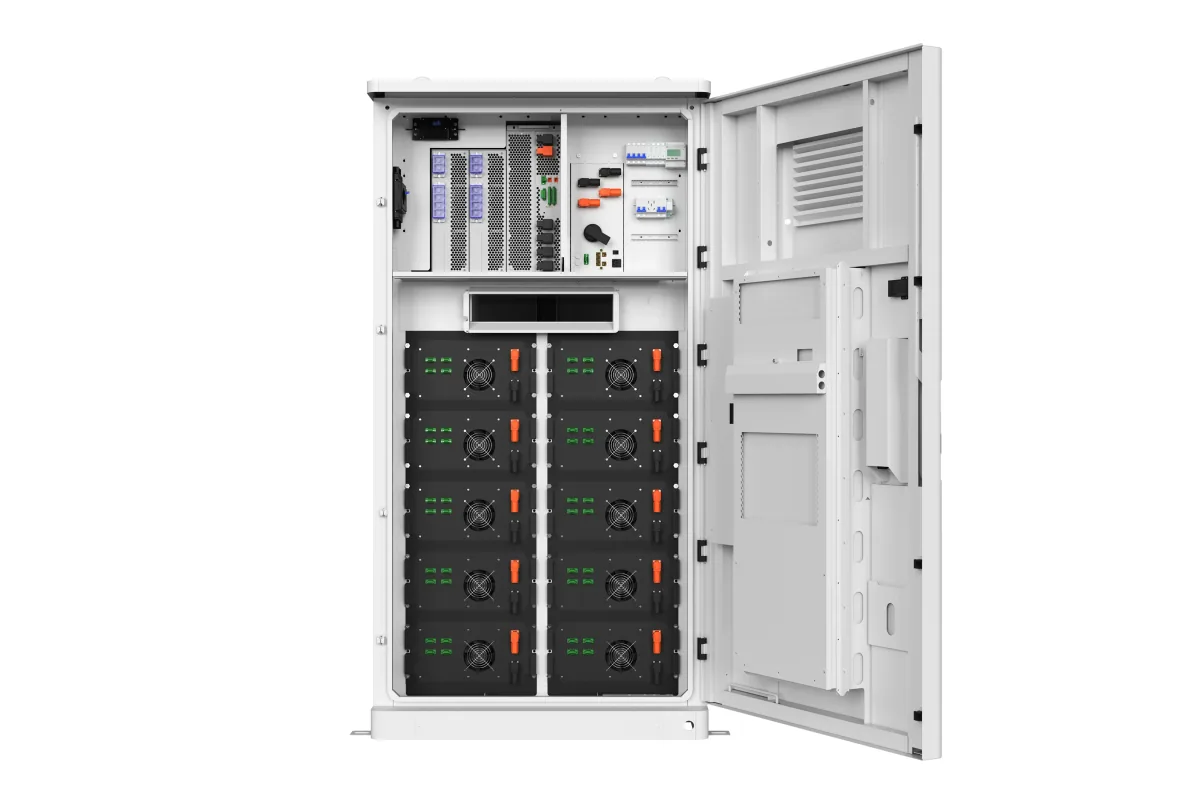

Containerized ESS
Utility-scale storage with centralized high-voltage control.
C&I Storage
Commercial systems with contactor-driven master control.
Grid-Side Storage
Frequency regulation and renewable smoothing with PCS/EMS.
Microgrid
High-voltage microgrid storage with islanded and grid-tied operation.
FAQ
Frequently Asked Questions
What voltage range does the HV Master BMS support?
What voltage range does the HV Master BMS support?
What current rating is available?
What current rating is available?
How does the master integrate with my PCS or EMS?
How does the master integrate with my PCS or EMS?
Real Photos
Factory & Product Gallery
Request Quote
Request an HV Master BMS Quote
Share your system voltage, cell count, and PCS/EMS model for a 24-hour engineering fit check.
Explore Products
Related BMS & Battery Systems
Browse our full range of BMS modules, battery packs, and ESS configurations.
